Specification and Remarks:

• Nickel plated steel case constructed with chrome plated zinc alloy housing; featuring an anti-picking detainer disc cylinder protection. By turning the key clockwise to withdraw the latch to open; and turning the key counterclockwise to dead lock the Latch. Key is removable at 12 and 6 o'clock positions.

• KD system - lock is assembled to code chart 'I' chart- using 'RB' key profile. Mark respectively code on key, 2 keys per lock.

• Packed individual plain white box, 20/inner box, in sequence. 80 (all KD) to a master carton. Mark Item no and lock code of contents outside of the carton.

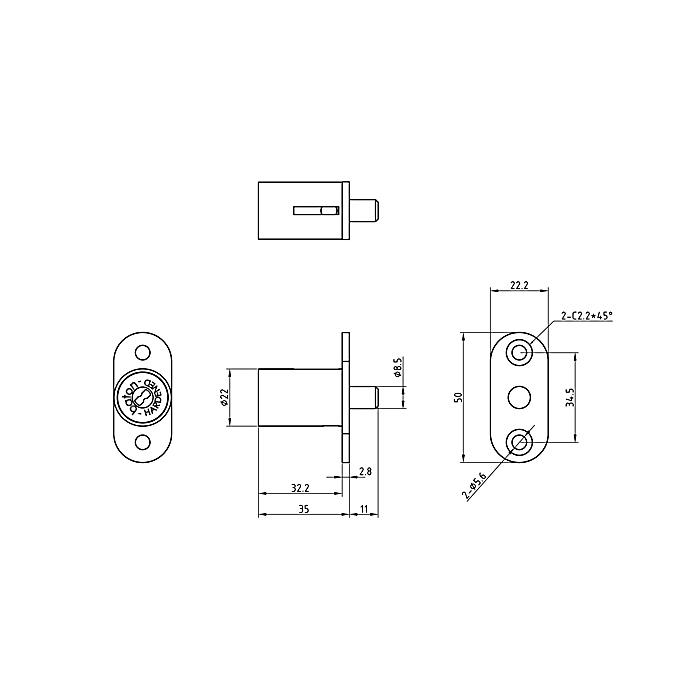

• 50mm double flange with 35mm center fiting hole 10.4mmx8.5mm



• Available for "R" & "D3" key series.
